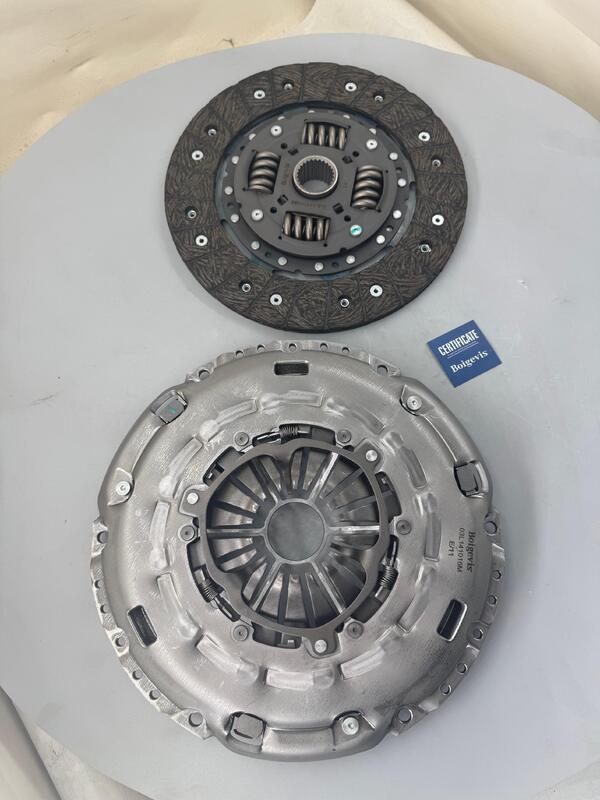

One stop purchase Clutch Assembly 03L 141 016 M for Imported Volkswagen Amarok

Standard Heavy-Duty Clutch Kit for Bulk Wholesale

100% OEM Exact Fit, Plug-and-Play Installation Without Modification

Full Compatible Vehicle List

1. Imported Volkswagen Amarok 2HA / 2HB chassis (2010–2022) 2.0 BiTDI pickup

Matching Powertrains

Optimized Heavy-Duty Structural Design

1. Die-cast high-carbon steel pressure plate: Uniform clamping force, anti-fatigue under frequent heavy-load start-stop, resistant to thermal deformation
2. Multi-layer high-density woven friction disc lining: High heat resistance, anti-burning, strong torque capacity for cargo towing and off-road use
3. Built-in multi-spring shock absorber hub: Effectively filter engine torsional vibration to eliminate take-off shudder
4. Integrated concentric slave cylinder with fluorine rubber seals: Dual oil and coolant isolation design to prevent internal leakage
5. Precision 26-tooth inner spline hub: Perfect meshing with transmission input shaft, no power loss or spline wear
6. Complete pre-assembled three-piece clutch unit, all matching installation hardware included for direct replacement

Core Transmission Protection Functions

1. Transfer full engine torque to gearbox to guarantee stable heavy-load towing and climbing performance
2. Smoothly separate and combine power flow to realize seamless gear shifting without impact noise
3. Buffer engine torsional vibration to reduce transmission internal gear wear and extend gearbox service life
4. Protect gearbox from overload damage by slipping slightly under extreme torque impact
5. Stabilize hydraulic pressure of clutch control circuit via integrated concentric slave cylinder to maintain consistent clutch pedal feel
6. Eliminate abnormal vehicle shudder during cold start and low-speed heavy load driving

Common Solvable Vehicle Faults

• Engine revs surge while vehicle speed rises slowly during uphill or loaded acceleration
• Obvious body shudder and vibration when releasing clutch pedal for take-off
• Hard and jerky gear shifting, difficult to engage first gear and reverse gear
• Visible hydraulic oil wet stains around clutch housing caused by slave cylinder leakage
• Abnormal burning smell emitted from transmission compartment under long-distance loaded driving
• Towing capacity significantly reduced, unable to carry full cargo weight normally

Brief Step-by-Step Installation Guide

Required Tools

1. Park vehicle on flat ground, cut off power supply by disconnecting battery negative terminal.
2. Lift vehicle fully, support gearbox with dedicated bracket, remove front drive shafts and exhaust pipeline blocking the gearbox.
3. Drain clutch hydraulic fluid into sealed container, disconnect hydraulic pipeline on concentric slave cylinder.
4. Loosen all gearbox fixing bolts and slowly separate gearbox from engine block.
5. Remove old worn clutch assembly, clean flywheel surface thoroughly to eliminate burnt friction lining residue.
6. Check dual-mass flywheel for abnormal shaking or wear, replace flywheel if obvious damage exists.
7. Coat thin layer of assembly lubricant on new clutch spline hub, align pressure plate positioning pins and install friction disc centrally.
8. Tighten pressure plate mounting bolts to Volkswagen specified torque value in diagonal sequence evenly.
9. Reinstall gearbox and reconnect drive shafts, exhaust pipeline and clutch hydraulic hose.
10. Refill fresh clutch hydraulic fluid, bleed all air from hydraulic circuit, start vehicle and test clutch take-off smoothness and gear shifting performance, check all joints for hydraulic leakage.

Strict Factory Testing & Stable Spot Supply
