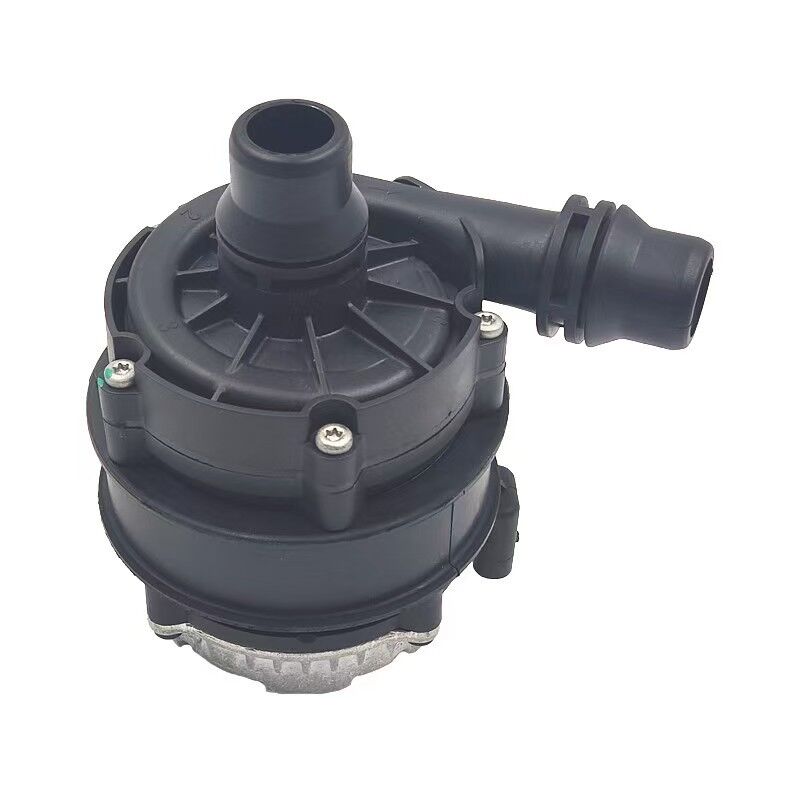

High quality Auxiliary Water Pump 0005002686 for Mercedes Benz C Class W205

Standard Electronic Auxiliary Coolant Pump for Bulk Wholesale

100% OEM Exact Fit, Plug-and-Play Installation Without Modification

Full Compatible Vehicle List

1. Mercedes-Benz C-Class W205 Sedan / Estate / Cabriolet (2015–2022): C180, C200, C250, C300, C43 AMG
2. Shared MRA/MRA2 platform models:
   • E-Class W213
   • S-Class W222 / W217 Coupe
   • GLC X253 (GLC200, GLC260, GLC300)
   • A-Class W176, B-Class W246, CLA C117, SLK/SLC R172

Matching Powertrains

Installation Position

Heavy-Duty Optimized Structural Design

1. Brushless silent motor core: Low vibration, low power consumption, stable long-cycle operation without burnout
2. Reinforced composite plastic pump housing: Resists coolant corrosion, high temperature aging and pressure cracking
3. Multi-layer high-temperature fluorine rubber sealing rings: Effectively prevent coolant seepage under long-term thermal cycling
4. Precision molded coolant inlet & outlet pipe joints: Perfect seal with original cooling hoses, no leakage risk
5. Integrated waterproof 3-pin electrical connector: Dustproof, waterproof and anti-oxidation for long service life
6. Complete pre-assembled pump unit, matched with standard mounting hardware for direct replacement

Core Cooling System Functions

1. Boost coolant flow at low engine speed to deliver fast, consistent warm air for passenger compartment heating
2. Continue circulating coolant after engine shutoff to dissipate residual turbo heat and avoid turbo damage
3. Stabilize operating temperature of mild-hybrid battery packs to extend battery service life
4. Eliminate local engine hotspots to reduce overall overheating risks in stop-and-go traffic
5. Maintain stable engine operating temperature to optimize fuel economy and reduce carbon deposit buildup
6. Restore factory residual heat function for winter vehicle use

Common Resolvable Vehicle Faults

• Slow or insufficient hot air from heater vents during cold starts and idling
• Persistent buzzing or humming noise from front engine bay when auxiliary pump activates
• Visible coolant stains and fluid leakage around pump mounting area
• Turbocharger overheating alert displayed on dashboard after short trips
• Engine temperature surges under heavy traffic or low-speed driving
• Vehicle residual heat function completely non-functional after ignition off

Brief Step-by-Step Installation Guide

Required Tools

1. Park vehicle on flat ground, fully cool down engine to avoid hot coolant scalding.
2. Lift front vehicle and drain all engine coolant into a sealed collection pan.
3. Disconnect negative battery terminal, unplug the 3-pin electrical connector from auxiliary pump.
4. Clamp cooling hoses on both pump ports, remove hose clamps and separate pipes from pump.
5. Loosen pump mounting bolts and remove the old faulty auxiliary pump assembly.
6. Clean mounting bracket surface and hose pipe connections of residual coolant and dirt.
7. Apply thin layer of rubber sealing grease to new pump pipe joints, align and install the A0005002686 pump.
8. Tighten all mounting bolts to Mercedes specified torque value, reconnect cooling hoses and secure clamps.
9. Plug electrical connector back in, reconnect battery negative terminal, refill vehicle with fresh coolant and bleed air from cooling circuit fully.
10. Start engine, turn on heater to maximum and run idle for 10 minutes to test pump operation, check for coolant leakage and stable cabin heating output.
