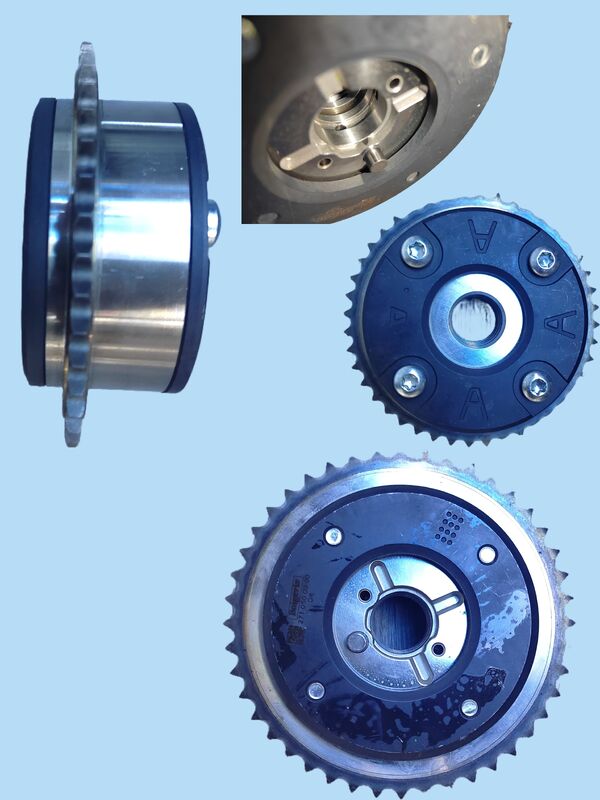

High sales Camshaft Adjuster Exhaust 2710 5009 00 for Mercedes Benz M271 Old Models

Standard Hydraulic Exhaust Camshaft Adjuster for Bulk Wholesale

100% OEM Exact Fit, Direct Bolt-On Installation Without Modification

Full Compatible Vehicle List

1. Mercedes-Benz C-Class W203 (2000–2007) C180, C200, C230 M271
2. Mercedes-Benz E-Class W211 (2002–2009) E200, E230
3. Mercedes-Benz CLK C209, SLK R171

Matching Powertrains

Installation Position

Optimized Heavy-Duty Structural Design

1. Integral quenched alloy steel timing sprocket: Surface carburizing hardening treatment, high wear resistance, effectively avoid tooth skipping during high-load acceleration
2. Reinforced multi-chamber hydraulic rotor assembly: Built-in multi-layer high-temperature fluorine rubber sealing rings to stop hydraulic oil leakage and timing drift
3. Precision machined internal spline hub: Tight meshing with exhaust camshaft to eliminate spline abrasion and timing offset
4. Standard directional built-in oil flow channel: Matches original VVT solenoid oil supply pressure for fast timing response
5. Complete pre-assembled phaser unit, equipped with OEM-style central fixing bolt for direct replacement

Core Engine Timing & Emission Control Functions

1. Adjust exhaust valve timing to optimize EGR circulation, lower nitrogen oxide exhaust emissions and meet emission standards
2. Boost low-speed torque output, eliminate idle shaking and weak low-speed acceleration response
3. Reduce exhaust residual pressure inside cylinders to cut engine pumping loss and lower overall fuel consumption
4. Stabilize cold startup operation, eliminate cold rattling noise and extend timing chain service life
5. Cooperate with intake VVT adjuster to balance power output and fuel economy across full engine speed range

Common Solvable Vehicle Faults

• Obvious rattling knocking noise from engine front within 3–5 seconds after cold ignition
• Unstable idle speed with severe vehicle body vibration when stationary
• Engine malfunction indicator light illuminates on dashboard, trouble code P0014/P0017 stored
• Slow acceleration and insufficient overtaking power output
• Fuel consumption rises significantly compared with factory standard data
• Multiple cranks required to complete cold engine startup

Brief Step-by-Step Installation Guide

Required Tools

1. Park vehicle on flat ground, shut down engine and wait for full cooling to prevent scalding by hot engine oil and high-temperature components.
2. Lift vehicle and remove engine upper decorative cover, drain all engine lubricating oil into sealed collection container.
3. Lock crankshaft and camshaft at standard timing position with dedicated Mercedes timing tools.
4. Disassemble timing chain front cover, release hydraulic timing chain tensioner and remove timing chain assembly.
5. Loosen central fixing bolt of old exhaust camshaft adjuster, pull the defective VVT gear out from camshaft spline slowly.
6. Thoroughly clean camshaft spline surface and hydraulic oil passages to remove sludge, carbon deposits and metal wear debris.
7. Coat thin layer of assembly lubricant on hydraulic cavity inside new A2710500900 adjuster, align spline and install onto exhaust camshaft.
8. Tighten central mounting bolt to Mercedes specified torque value evenly, reset timing chain and tensioner in correct order.
9. Remove timing locking tools, rotate crankshaft manually twice to confirm no mechanical jamming or tooth skipping.
10. Refill fresh matching engine oil, start engine and idle for 10 minutes to check abnormal noise; connect diagnostic computer to clear fault codes and complete road test.

Strict Factory Testing & Stable Spot Supply
