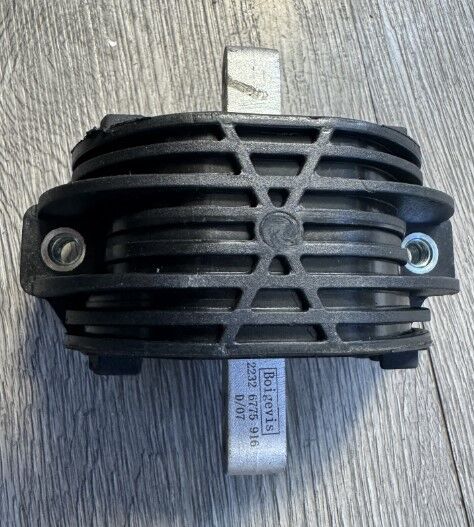

High Sales Transmission Mount 2232 6775 916 for BMW N20 and N52

Core Powertrain Vibration Isolator for Consolidated Bulk Orders

100% OEM Precise Matching, Direct Bolt-On Installation Without Modification

Full Compatible Vehicle List

1. BMW 5 Series F10/F11/F18 (2010–2017): 520i (N20), 523i/528i/530i (N52)
2. BMW 7 Series F01/F02 (2009–2015): 730Li (N52), 740i/Li early N52 versions
3. BMW 6 Series F06/F12/F13 Gran Coupe/Cabriolet
4. BMW 5 Series GT F07

Matching Powertrains

Installation Position

Optimized Heavy-Duty Structural Design

1. High-density natural rubber buffer core: Excellent vibration absorption and torque resistance, effectively isolate powertrain low-frequency resonance from the cabin
2. Integral cast aluminum upper bracket + stamped steel lower base: High structural rigidity, anti-deformation under heavy torque output
3. High-temperature anti-aging rubber formula: Resist gearbox oil splashing and long-term chassis heat baking, avoid rubber hardening and cracking
4. Precision locating pin design: Prevent mount lateral shift during sharp acceleration and braking
5. Complete one-piece finished mount assembly, equipped with standard installation bolts for direct replacement

Core Powertrain & Cabin Comfort Protection Functions

1. Secure transmission fixed position, limit excessive front-back and left-right displacement during torque output
2. Absorb vibration generated by N20 turbo and N52 inline-six engines, eliminate idle shaking transmitted to seats and steering wheel
3. Buffer impact force during gear shifting, reduce metal clunk noise from chassis
4. Avoid abnormal friction between transmission and exhaust pipeline, wiring harness and chassis subframe
5. Reduce long-term stress on transmission output shaft and driveshaft, extend service life of drive system parts

Common Solvable Vehicle Faults

• Severe body and steering wheel vibration when idling in D gear with brake pressed
• Loud clunk knocking sound when switching between Drive and Reverse gear
• Obvious floorboard resonance and hum at 1500–2000 RPM during constant speed driving
• Visible cracks, deformation or collapsed rubber on mount after lifting vehicle
• Exhaust pipe collision noise during hard acceleration or heavy braking
• Abnormal wear of transmission oil seal caused by excessive gearbox displacement

Brief Step-by-Step Installation Guide

Required Tools

1. Park vehicle on flat hard ground, lift whole car and lock firmly with jack stands, remove chassis lower protective belly pan.
2. Place a dedicated transmission support jack under the gearbox to bear the full weight of transmission, do not suspend gearbox by driveshaft.
3. Loosen three fixing bolts connecting transmission mount to gearbox and two bolts linking mount to chassis subframe, remove old damaged mount.
4. Thoroughly clean rust, oil stain and dust on gearbox base and chassis mounting contact surface.
5. Align the locating pin of new 22326775916 transmission mount with chassis reserved hole, attach mount to gearbox first and hand-tighten all bolts loosely.
6. Adjust transmission height via support jack to eliminate mount pre-tension, tighten all fixing bolts to factory specified torque value in diagonal sequence.
7. Remove transmission support jack, reinstall chassis belly pan, lower vehicle fully to ground.
8. Start engine, shift between D and R gear repeatedly to check for abnormal knocking noise.
9. Complete low-speed road test, verify idle vibration and gear shift noise disappear completely.
