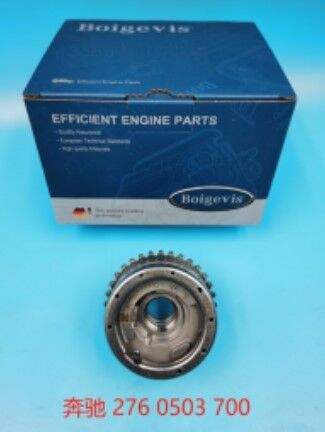

High sales Intake Camshaft Adjuster A276 050 3700 for Mercedes-Benz New M276 3.0/3.5 Engine

Standard Hydraulic VVT Camshaft Adjuster for Bulk Wholesale

100% OEM Exact Fit, Direct Installation Without Modification

Full Compatible Vehicle List

1. C-Class W204 / W205: C300, C350, C400, C43 AMG
2. E-Class W212 / W213: E300, E350, E400, E450
3. S-Class W222: S320, S350, S400, S450
4. SUV models: ML W166, GLE X166, GL/GLS X166, R-Class W251
5. Coupe & Roadster: CLS C218, SLC R172, SL R231

Matching Powertrains

Installation Position

Optimized Heavy-Duty Structural Design

1. High-strength integral alloy steel sprocket: Precision tooth quenching treatment, anti-wear, anti-tooth skipping under high-load acceleration
2. Multi-layer hydraulic sealed rotor assembly: Reinforced internal oil sealing cavity, effectively prevent hydraulic pressure leakage and timing drift
3. Hardened internal spline hub: Perfect meshing with intake camshaft, eliminate spline wear and timing deviation
4. High-temperature resistant fluorine rubber internal sealing gaskets: Stable hydraulic performance under 120℃+ long-term engine working temperature
5. Standard positioning oil flow passage: Matches original VVT solenoid oil supply pressure to ensure fast timing response
6. Complete pre-assembled camshaft adjuster unit, directly replace original gear without extra accessories

Core Engine Timing & Power Optimization Functions

1. Advance intake valve timing at low speed to boost low-torque output, eliminate idle shaking and weak low-speed power
2. Delay intake valve timing under high-speed full load to improve high RPM horsepower and reduce pumping loss
3. Optimize valve overlap to fully burn mixed gas, lower vehicle comprehensive fuel consumption and exhaust carbon deposits
4. Stabilize engine cold start performance, reduce cold startup abnormal rattling noise and startup delay
5. Protect timing chain from impact load caused by unstable valve timing, extend timing chain service life

Common Solvable Vehicle Faults

• Engine obvious rattling knocking noise within 3-5 seconds after cold ignition
• Rough unstable idle speed with obvious vibration when vehicle stops
• Dashboard engine fault light illuminates, store trouble code P0021 / P0016
• Vehicle acceleration power insufficient, overtaking response lag
• Fuel consumption rises significantly compared with normal condition
• Difficult cold start, requiring multiple cranks to ignite engine

Brief Step-by-Step Installation Guide

Required Tools

1. Lift vehicle and remove engine upper decorative cover, drain engine oil completely.
2. Lock crankshaft and camshaft with special Mercedes timing tools to fix original timing position.
3. Remove timing chain cover, release timing chain tensioner and take down timing chain assembly.
4. Loosen the central fixing bolt of old intake camshaft adjuster, take off the defective VVT gear from camshaft spline.
5. Clean camshaft spline surface and hydraulic oil passage thoroughly to remove sludge and metal debris.
6. Coat thin layer of assembly lubricant on internal rotor hydraulic cavity of new A2760503700 adjuster, align spline and install onto intake camshaft.
7. Tighten central fixing bolt to Mercedes specified torque value, reset timing chain and tensioner in order.
8. Remove timing locking tools, turn crankshaft manually twice to verify no timing jamming or tooth skipping.
9. Refill fresh matching Mercedes engine oil, start engine and idle for 10 minutes to eliminate abnormal rattling noise.
10. Connect diagnostic computer to clear fault codes, test drive to confirm power recovery and no recurring timing fault alerts.

Strict Factory Testing & Stable Spot Supply
