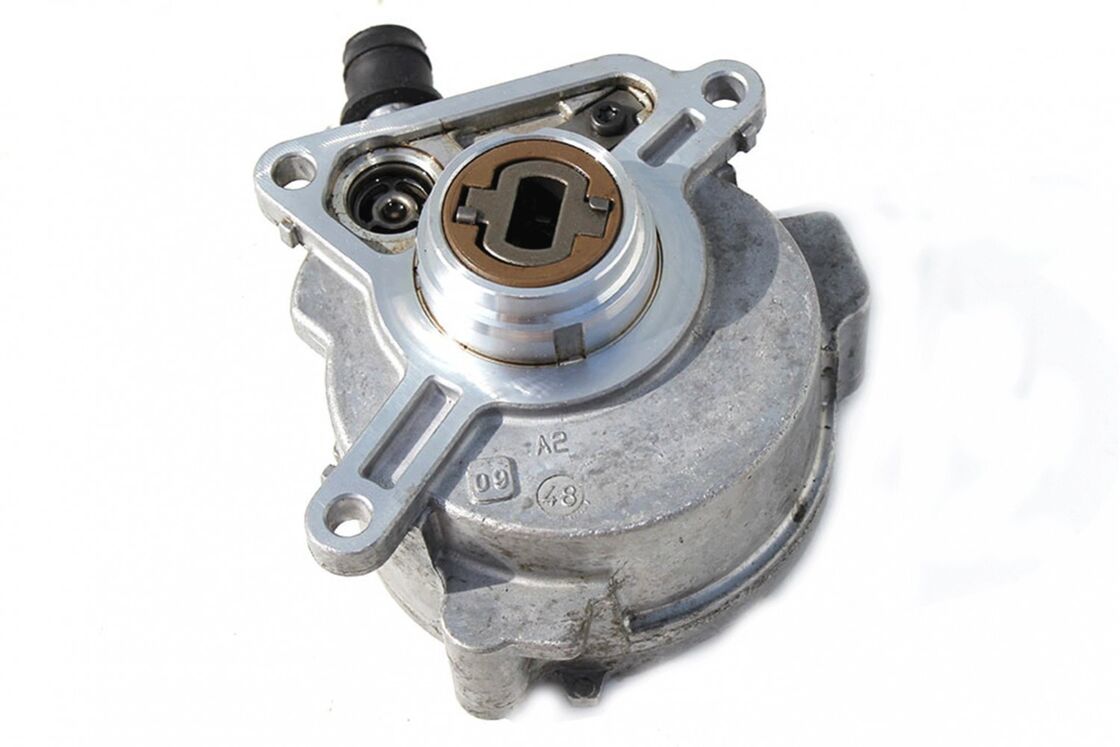

One stop shopping Brake Vacuum Pump 03H 145 100 B for FAW Audi Q7 3.6 VR6

Standard Mechanical Vacuum Pump for Bulk Wholesale

100% OEM Exact Fit, Direct Bolt-On Installation Without Modification

Full Compatible Vehicle List

1. FAW Imported Audi Q7 4L chassis (2006–2010) 3.6 FSI VR6
2. Shared VR6 platform models:
   • Volkswagen Touareg 7P 3.6 V6 FSI
   • Volkswagen Passat CC / Phaeton 3.6 VR6
   • Porsche Cayenne 9PA 3.6 VR6

Matching Powertrains

Installation Position

Optimized Heavy-Duty Structural Design

1. Integral die-cast aluminum pump housing: Light weight, high structural rigidity, resistant to high-temperature engine oil corrosion and pressure deformation
2. Wear-resistant carbon fiber reinforced internal vanes: Stable vacuum generation under long-time high-speed rotation, anti-abrasion and long service cycle
3. Multi-layer high-temperature fluorine rubber main sealing ring: Block engine oil seepage from pump flange surface, anti-hardening and anti-aging under 120℃+ engine working temperature
4. Precision spline drive port: Perfect meshing with camshaft drive gear, no slipping to guarantee continuous vacuum output
5. Standard vacuum outlet male thread joint: Tight sealed connection with original vacuum rubber hose, eliminate vacuum leakage risk
6. Complete pre-assembled vacuum pump unit, matched with mounting sealing gasket for direct replacement

Core Brake System Safety Protection Functions

1. Generate stable negative vacuum pressure for brake booster to lighten brake pedal pressing force and reduce driver fatigue
2. Maintain sufficient vacuum reserve for multiple consecutive emergency braking operations
3. Prevent vacuum loss during high-load engine acceleration to avoid sudden brake assist failure
4. Isolate engine oil from vacuum pipeline to protect brake booster internal diaphragm from oil swelling damage
5. Eliminate abnormal vacuum leakage noise inside engine bay, improve overall vehicle driving comfort

Common Solvable Vehicle Faults

• Extremely stiff and heavy brake pedal, requiring great force to stop vehicle
• Braking distance obviously extended under normal driving speed
• Continuous hissing vacuum leakage sound coming from cylinder head side
• Dashboard brake assist fault warning light illuminates constantly
• Abnormal buzzing mechanical noise from engine head during engine operation
• Vacuum booster diaphragm damaged caused by oil infiltration from defective pump

Brief Step-by-Step Installation Guide

Required Tools

1. Park vehicle on flat ground, shut down engine and wait for full cooling to avoid scalding by hot engine parts.
2. Lift vehicle and remove engine upper decorative cover to expose cylinder head vacuum pump mounting position.
3. Clamp and disconnect vacuum rubber hose on pump outlet port, wipe residual engine oil with absorbent cloth.
4. Loosen two fixing bolts of vacuum pump flange, pull out old vacuum pump from camshaft drive spline slowly.
5. Clean cylinder head mounting surface thoroughly, remove aging sealing ring residue and accumulated sludge.
6. Install brand new sealing gasket on the flange of 03H145100B vacuum pump, align drive spline with camshaft gear and push pump fully in place.
7. Tighten two mounting bolts to Volkswagen specified torque value evenly, reconnect vacuum hose and lock joint clip firmly.
8. Start engine and idle for 5 minutes, step brake pedal repeatedly to test pedal softness and vacuum assist effect.
9. Check pump flange and vacuum hose joint carefully for oil leakage and vacuum hissing noise, complete road test to confirm brake performance fully recovered.

Strict Factory Testing & Stable Spot Supply
