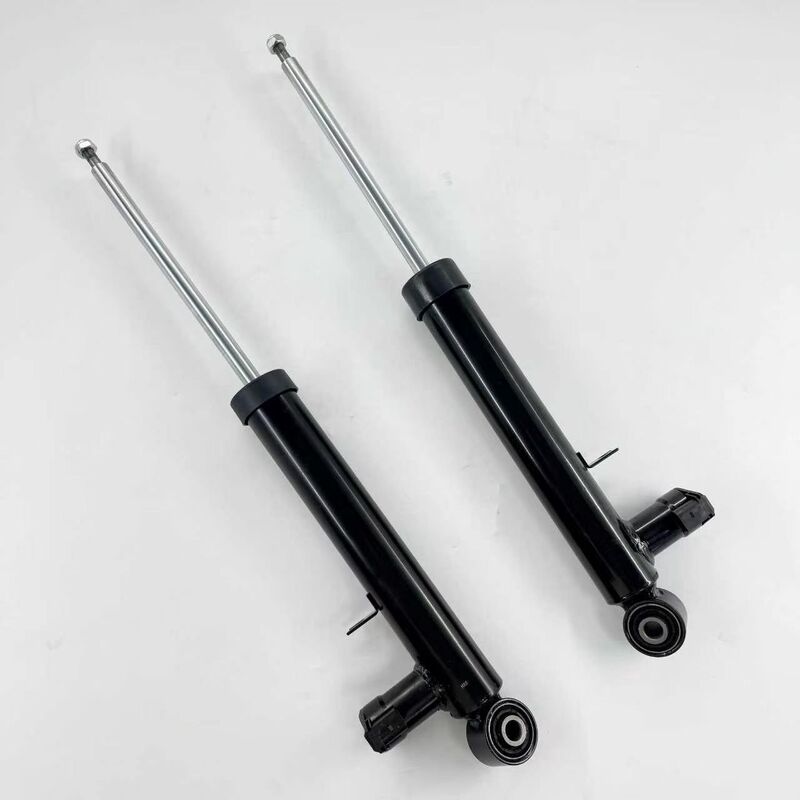

High quality shock absorber 5N0 513 009H for Golf

Premium Conventional Suspension Part for Bulk Consolidated Orders

100% OEM Precise Matching, Direct Bolt-On Installation Without Modification

Full Compatible Vehicle List

1. Volkswagen Golf Mk6 (2008-2013) standard suspension version
2. VW Tiguan 5N First Generation (2007-2017)
3. VW Passat B7 / Passat CC 357 (2008-2015)
4. VW Scirocco Mk3, VW EOS Convertible
5. VW Touran 1T3, Sharan 7N, Seat Alhambra shared platform models

Matching Powertrains

Installation Position

Optimized Heavy-Duty Structural Design

1. High-pressure nitrogen gas sealed twin-tube structure: Stable dual-stage compression & rebound damping, excellent anti-fade performance during long highway and mountain driving
2. Seamless cold-drawn cylinder tube + hard chrome plated piston rod: Wear-resistant, anti-rust, effectively prevent hydraulic oil leakage under frequent suspension compression
3. Multi-layer fluorine rubber composite oil seal: Resist hydraulic oil corrosion, high-low temperature anti-aging, extend overall service life
4. Integrated yellow PU impact buffer + textile reinforced dust boot: Block gravel scratch damage to piston rod, eliminate metal collision noise at full compression stroke
5. Galvanized anti-corrosion top flange and bottom rubber bushing: Resist rain, snow and road salt erosion in winter
6. Complete one-piece shock absorber assembly, matched with standard installation hardware for direct replacement

Core Vehicle Handling & Riding Comfort Functions

1. Provide consistent fixed damping force to balance soft comfortable city cruising and stable firm high-speed cornering handling
2. Suppress excessive spring rebound after hitting road bumps, eliminate continuous rear floating "boat shake"
3. Reduce rear body tilt during sharp lane change and turning, upgrade vehicle road holding and driving safety
4. Filter road vibration transmitted into cabin, improve overall riding comfort of compact and mid-size VAG family vehicles
5. Prevent irregular cupped rear tire wear, extend tire service cycle
6. Maintain standard factory vehicle ride height, avoid unilateral suspension sinking caused by shock absorber failure

Common Solvable Vehicle Faults

• Rear end bounces repeatedly multiple times after passing speed bumps and potholes
• Obvious metal clunk knocking noise from rear wheel arch on uneven roads
• Severe rear body tilt and unstable steering during high-speed lane change or sharp turning
• Visible oil stains and hydraulic leakage on shock absorber cylinder outer wall
• Cupped scalloped uneven wear on rear tire tread surface
• Obvious rear squat when hard accelerating, severe nose diving during heavy emergency braking

Brief Step-by-Step Installation Guide

Required Tools

1. Park vehicle on flat level ground, lift rear axle and fix firmly with jack stands, remove rear wheel.
2. Use spring compressor to pre-compress rear coil spring to release suspension tension.
3. Loosen and remove top flange fixing nuts and bottom axle bolt, take out the old shock absorber assembly.
4. Clean rust and dirt on suspension mounting brackets and axle contact surfaces thoroughly.
5. Install new 5N0513009H shock absorber, align top flange hole positions and bottom bushing eyelet.
6. Tighten all mounting bolts to factory specified torque value.
7. Release spring compressor slowly, reinstall rear wheel, lower vehicle fully to ground.
8. Press rear vehicle corners manually for multiple slow compression tests to check abnormal noise.
9. Conduct road test to verify normal suspension damping performance.

Strict Factory Testing & Stable Spot Supply
