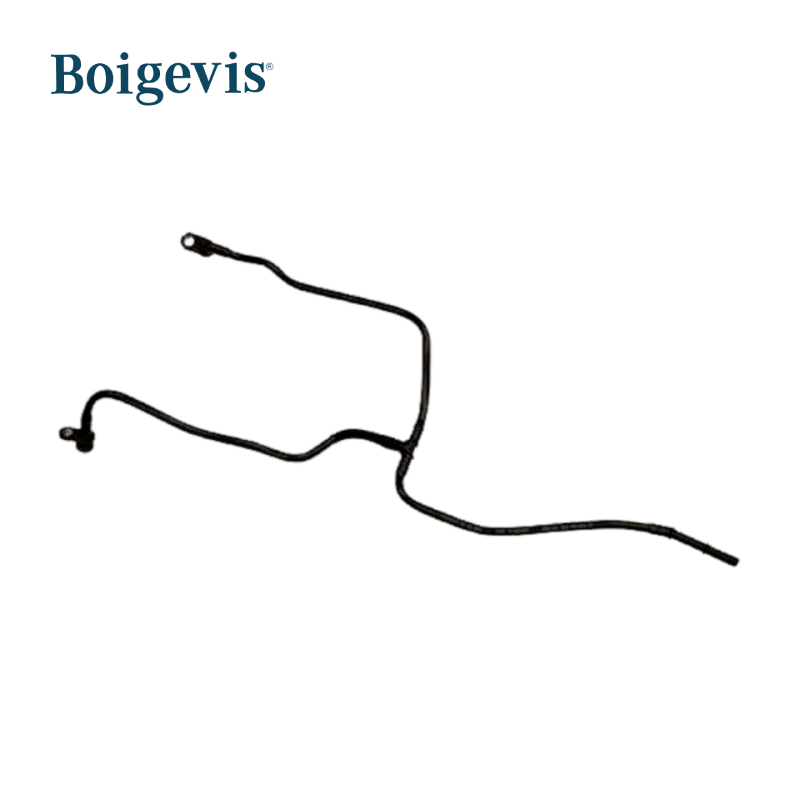

This vent pipe is an original equipment (OE) dedicated part for the cooling system of the 1st-generation Porsche Cayenne, focusing on "precise fit + stable temperature control". Its applicable scope, functional design, and on-vehicle value are as follows:
I. Precise Fit: Models, Years & Displacement
It is only compatible with the 1st-generation Porsche Cayenne (chassis code: 9PA), covering all fuel-powered versions. The specific parameters are as follows:
• Applicable Years: 2003–2010 (the full production cycle of the 1st-generation Cayenne);
• Specific Models & Displacement:
1. Cayenne Base Model: 3.2L V6 naturally aspirated engine (maximum power: 250 HP, engine model: M48.01);
2. Cayenne S: 4.5L V8 naturally aspirated engine (maximum power: 340 HP, engine model: M48.02);
3. Cayenne Turbo: 4.5L V8 twin-turbocharged engine (maximum power: 450 HP, engine model: M48.50);
4. Cayenne GTS: 4.8L V8 naturally aspirated engine (launched after 2007, maximum power: 405 HP, engine model: M48.03);
5. Cayenne Diesel: 3.0L V6 turbocharged diesel engine (2009–2010 models, maximum power: 240 HP, engine model: M57.20).
 Incompatible Models: The 2nd-generation Cayenne (2011 onwards, chassis code: 92A), Macan, Panamera, and other models. Cross-model installation is prohibited due to completely different cooling system layouts and interface sizes.
II. Core Functions: The "Pressure & Flow Manager" of the Cooling System
As a key connecting component of the cooling system, its functions revolve around "ensuring stable coolant circulation" and directly affect engine heat dissipation efficiency:
1. Dynamic Pressure Balance to Prevent Pipeline Bursting
It integrates a micro-perforated pressure regulation structure, which can automatically adapt to pressure fluctuations in the cooling system (normal operating pressure: 1.1–1.3bar):
• Under high-load conditions (e.g., high-speed climbing, towing), the coolant heats up and expands, causing pressure to rise above 1.5bar. The vent pipe can release excess pressure through the pressure relief hole, preventing radiators and water pipes from bursting due to overpressure;
• During cold starts, when pressure drops sharply, it also prevents external air from backflowing, maintaining system tightness.
2. Discharging System Air Lock to Accelerate Warm-Up Efficiency
If air remains in the cooling system (e.g., after coolant replacement), it will form an "air lock" that blocks coolant circulation and causes local overheating. With a top inclined design (15° angle), the vent pipe can quickly guide air to the expansion tank for discharge:
• Test data shows that compared with pipes without this design, the cold-start warm-up time is reduced by 15% (from 8 minutes to 6.8 minutes), minimizing cold wear of the engine in winter.
3. Recycling Overflow Coolant to Prevent Waste & Corrosion
A siphon-type return groove is installed at the bottom of the pipe. When coolant overflows into the vent pipe due to high-temperature expansion, it can be guided back to the expansion tank through the return groove, avoiding coolant loss (approximately 50ml can be recycled per high-load cycle);
• At the same time, it reduces the probability of coolant dripping onto metal components of the chassis, lowering the risk of chassis corrosion (especially suitable for scenarios where deicing agents are used in northern regions).
III. On-Vehicle Practicality: Ensuring Reliability & Reducing Maintenance Costs
Although the vent pipe is a "small component", it has a significant impact on the overall vehicle usage experience and maintenance costs. Its core practicality is reflected in three aspects:
1. Durable Material to Reduce Frequent Replacement
Made of PA66 + 30% glass fiber reinforced nylon, it has a maximum high-temperature resistance of 120℃ (normal operating temperature of coolant: 90–105℃), and its anti-aging performance is 50% higher than that of ordinary rubber pipes:
• Under normal use, its service life can reach 80,000–100,000 km, far exceeding that of similar wearing parts (e.g., ordinary rubber water pipes have an average service life of 30,000–50,000 km), reducing mid-term maintenance frequency.
2. Direct Fault Impact: Timely Replacement Avoids Major Repairs
If the vent pipe develops cracks or experiences aging and leakage at joints, two major problems will occur:
• Slow coolant leakage will cause the water temperature warning light on the instrument panel to light up intermittently. Ignoring this for a long time will lead to "high-temperature boiling" of the engine, and in severe cases, damage to the cylinder head gasket (repair cost exceeds 10,000 yuan);
• Failure to discharge system air locks will cause the radiator fan to start frequently (increasing noise), and fuel consumption will rise by approximately 3% (due to reduced combustion efficiency caused by excessive engine temperature).
 Recommendation: After the vehicle has traveled 60,000 km or been used for 5 years, regularly check the pipe surface for cracks or softening. If problems are found, replace it in a timely manner (the part cost is low, and maintenance labor time is approximately 30 minutes).
3. Adaptation to Multiple Working Conditions to Ensure Vehicle Use in Complex Scenarios
• Off-road Scenarios: When the chassis is bumpy, the pipe is fixed by 3 rubber clips, which can absorb vibration (maximum displacement: ±3mm) and prevent joint loosening;
• High-Temperature Regions: In high-temperature environments such as the Middle East and Southeast Asia, the pressure balance function can prevent the coolant boiling point from decreasing (high temperatures lower the coolant boiling point, easily causing boiling) and maintain stable heat dissipation;
• Diesel Model Adaptation: For the Cayenne Diesel version, the inner wall of the pipe is coated with a diesel corrosion-resistant layer to prevent pipeline embrittlement caused by diesel vapor penetration.
